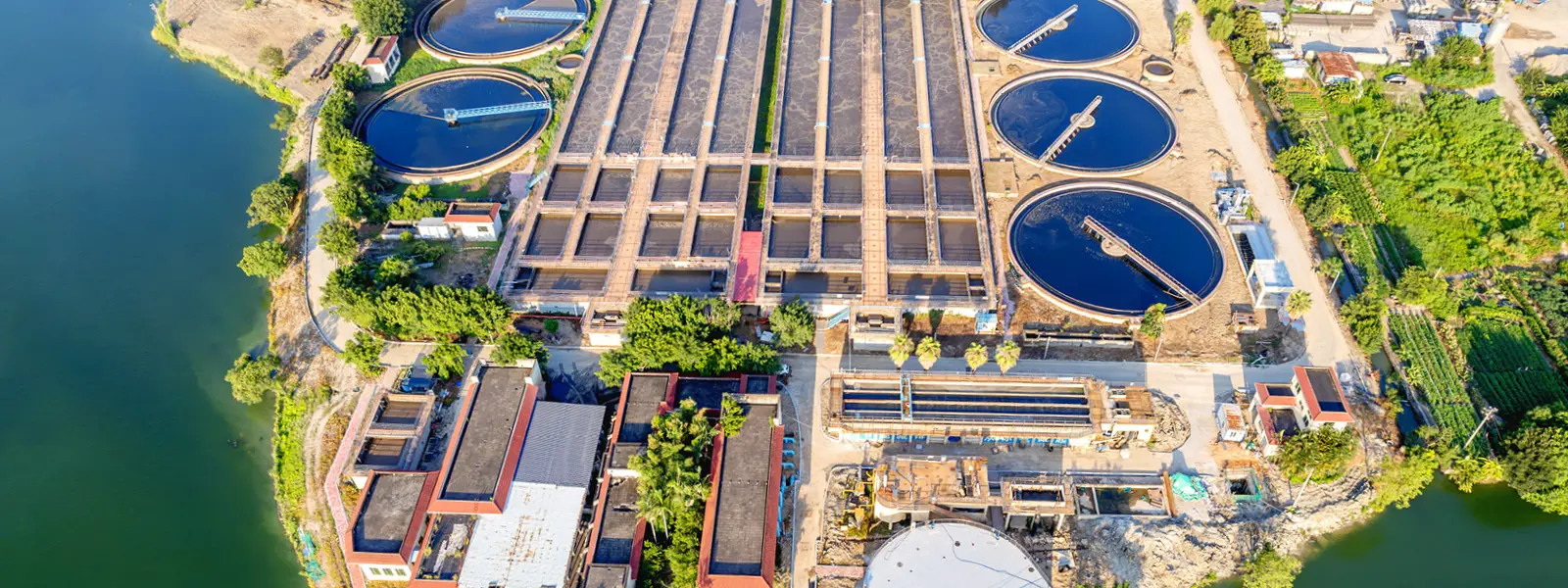

Our Q-Eye PSC solution reliably measures both full and partially filled pipes, as well as open channels with flow depths from 40 to 1500 mm. Q-Eye PSC delivers precise measurements, even under challenging conditions, supporting efficient control, monitoring, and planning. The solution is ideally suited for wastewater treatment plants, sewage collection systems, urban drainage, and industrial applications.
The passive water level sensor delivers precise measurements even at inclines of up to 10°. The integrated temperature sensor ensures reliable flow and water level data. The robust design minimizes maintenance and costs. Easy commissioning and real-time remote monitoring are possible at any time via the platform-independent web interface with Wi-Fi and LAN access.
The Q-Eye PSC functions reliably even with changing flow profiles and water levels.
Flexible installation, tilt compensation and versatile sensor options enable use in a wide variety of applications.
For fully and partially filled pipes and open channels with a water level of 40–1500 mm.
Reliable even with non-standardized or rapidly changing flow behavior.
Provides precise data for planning, operation and process optimization.
The velocity sensor can be mounted upwards on the bottom of the pipe or channel or laterally on the wall, supports up to three sensors per cross-section, offers weld-in sensors for hard-to-reach pipes and can optionally be supplemented with external water level sensors (pressure, ultrasound or radar).
Q-Eye PSC has an integrated web server with WebUI, which can be controlled directly via the standard browser of a smartphone, tablet or notebook without additional software – for particularly easy parameterization and data visualization.
The Q-Eye PSC system is designed for stationary flow monitoring of lightly to heavily contaminated media in fully and partially filled pipes or open channels. It utilizes advanced pulse cross-correlation technology for direct evaluation of velocity profiles, measures bidirectional flows down to 0.04 m/s, and, thanks to integrated temperature compensation, eliminates the need for regular on-site calibrations, thus significantly reducing overall operating costs.
The Q-Eye PSC system sets new standards in open channel flow measurement and is the most advanced wastewater measurement system in the GWFfamily of high-precision measurement solutions. With its industry-leading pulse cross-correlation technology, it captures the entire velocity profile in up to 32 measuring cells with the highest resolution, tracks flow changes in real time at 1 Hz, and delivers precise measurements even at low or high water levels – for reliable, efficient, and future-proof sewer monitoring.
